F7-Series Compact OTDR
Highlights
- An 8-inch high-definition capacitive touch screen and full-function buttons make it easy to use
- Up to 45dB dynamic range
- A minimum test blind zone of 0.8m
- The optional online test module enables lossless link light test
- Unique test result self-diagnosis function ensures the reliability and validity of the test results
- OPM, VFL, OLS
- Active fiber test (optional)
- Fiber microscope
- Optical loss test
- Event map
- Bluetooth
TFN offers a high-performance multi-function OTDR for fast and accurate optical fiber testing. Rich configuration function modules such as dual-wavelength, three-wavelength (for active fiber online test), four-wavelength, and single-mode and multi-mode integration.
Specifications
| Model / Item | F7-S1 | F7-S3 | F7-S4 | F7-M1 | F7-SM1 | F7-T1 | F7-T2 | F7-T3 |
| Wavelength(nm) | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300/1310/1550 | 1310/1490/1550 | 1310/1550/1625 | 1310/1550/1650 |
| Dynamic Range(dB) | 35/33 | 42/40 | 45/43 | 26/28 | 26/28/35/33 | 38/36/36 | 38/36/36 | 38/36/36 |
| Event Dead Zone(m) | 1 | 0.8 | 0.8 | 1 | 1 | 0.8 | 0.8 | 0.8 |
| Attenuation Dead Zone(m) | 5 | 4 | 4 | 5 | 5 | 4 | 4 | 4 |
| Test Range | 500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/250km/420km | |||||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us | |||||||
| Distance Accuracy | ±(0.75m+ sampling interval + 0.005%*test distance) | |||||||
| Optical Connector | FC/PC （interchangeable SC, ST） | |||||||
| OPM | -50dB ~+26dB | |||||||
| Battery | 15600mAh. Standby time over 10 hours | |||||||
| Weight | 1.7KG | |||||||
Applications: communication operator, optical cable producer, and electric power/railway/highspeed network
Product Demo

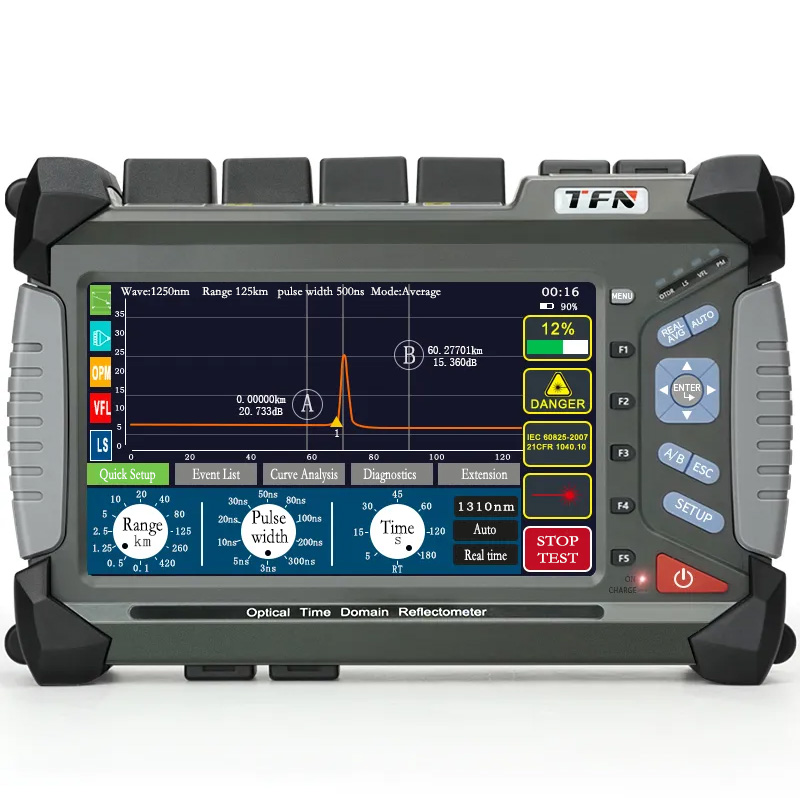

OTDR

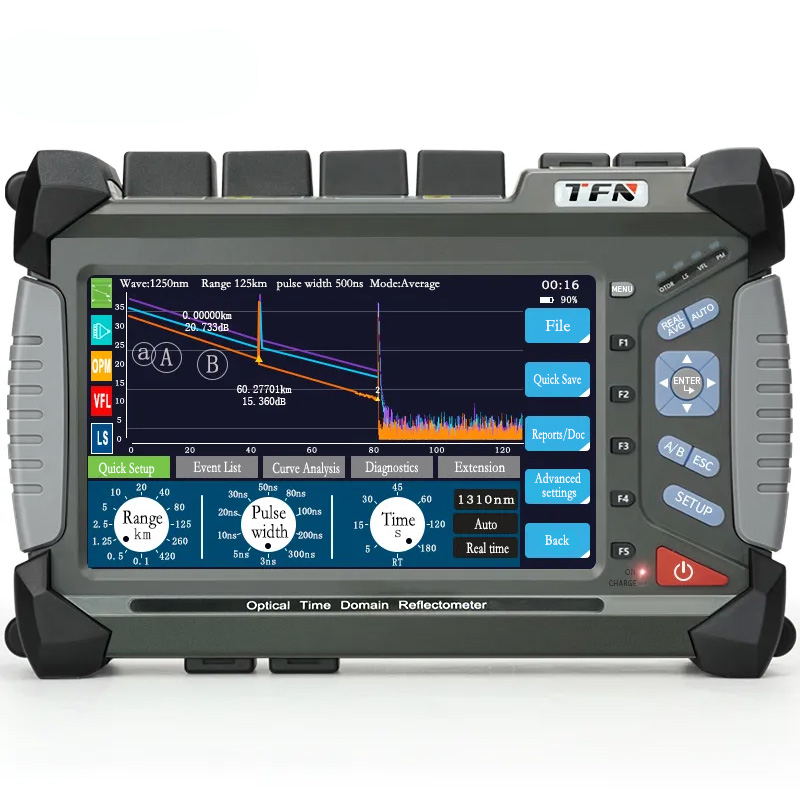

The OTDR features flexible setup options, including launch and end fiber configurations. It supports customizable PASS/FAIL thresholds, visually distinguishes event qualifications, generates detailed PDF reports, and allows comparison of multiple SOR curves with advanced analysis methods like the four-point and LSA methods.

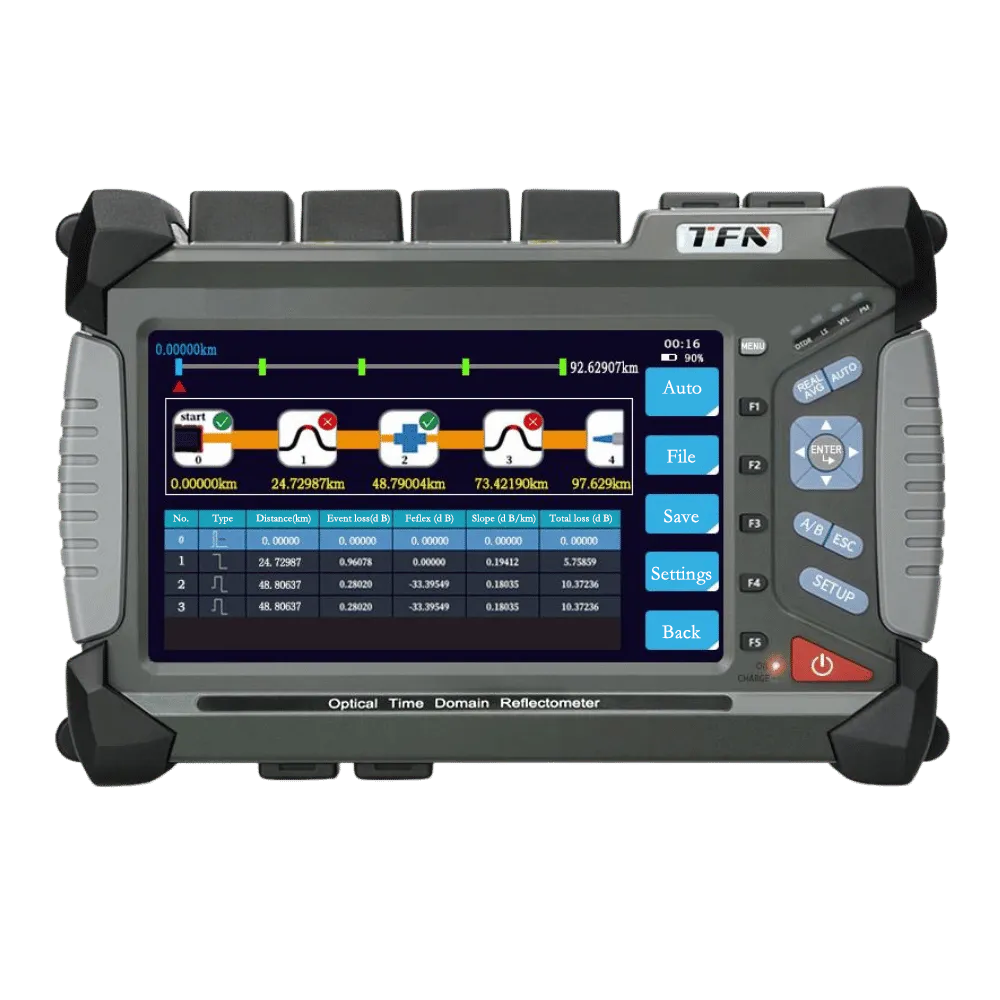

Event Map
The F7 OTDR features a powerful event map that supports macro bend fault analysis and identifies different types of macro bend events. It provides PASS/FAIL threshold judgment with flexible threshold customization, and distinguishes qualified and unqualified events with intuitive visual indicators. The system can auto-generate test reports that include curve traces, event lists, and other details.
