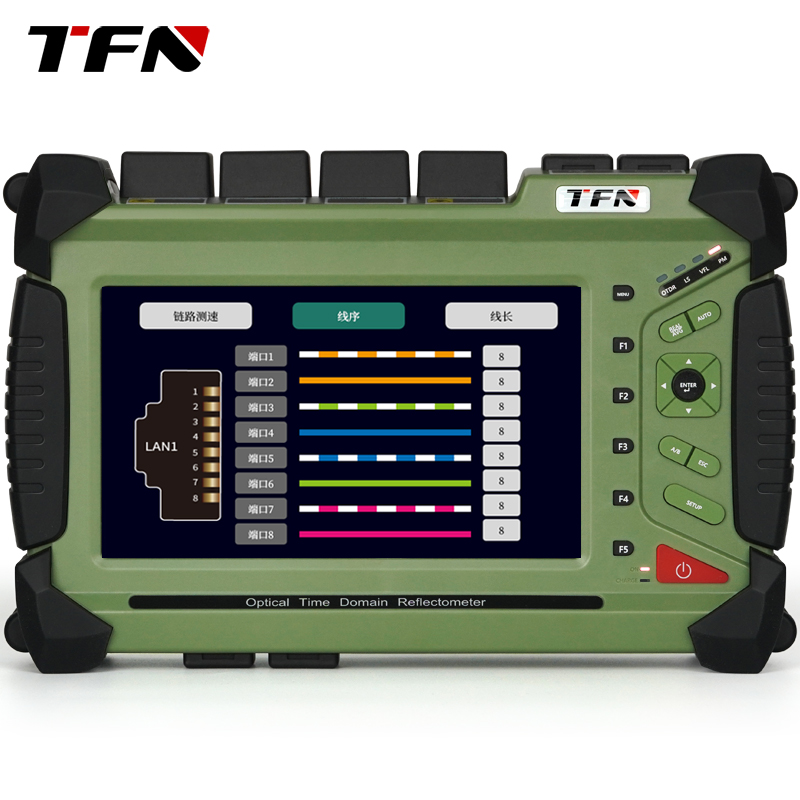

F4-Series Compact OTDR

Highlights

  • An 8-inch high-definition capacitive touch screen and full-function buttons make it easy to use
  • 35/33dB dynamic range
  • A minimum test blind zone of 0.8m
  • The optional online test module enables lossless link light test
  • single-mode/multi-mode/integrated
  • OPM, VFL
  • Fault location
  • Fiber microscope
  • Optical loss test
  • optical eye (MAP view)
  • Bluetooth

TFN offers a high-performance multi-function OTDR for fast and accurate optical fiber testing. F4 also features Ethernet test, remote test, OTDR.

Request a Quote

Specifications

Model / ItemF4F4-V1F4-V2F4-SMV
Wavelength(nm)1310/15501310/15501310/1550850/1300/1310/1550
Dynamic Range(dB)35/3342/4045/4326/30/37/35
Event Dead Zone(m)10.80.81
Attenuation Dead Zone(m)6666
Test Range 500m /1km /2km /4km /8km /16km /32km /64km /128km /256km
Pulse Width5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/ 20000ns
Distance Accuracy±(0.75m+ sampling interval + 0.005%*test distance)
Optical ConnectorFC/PC （interchangeable SC, ST）
OPM-50dB ~+26dB
Battery15600mAh. Standby time over 10 hours
Weight1.1 KG

Use cases

Acceptance testing of fiber optic communication systems.

Development and production of fiber optic cables

Construction testing and repair of the communication system.

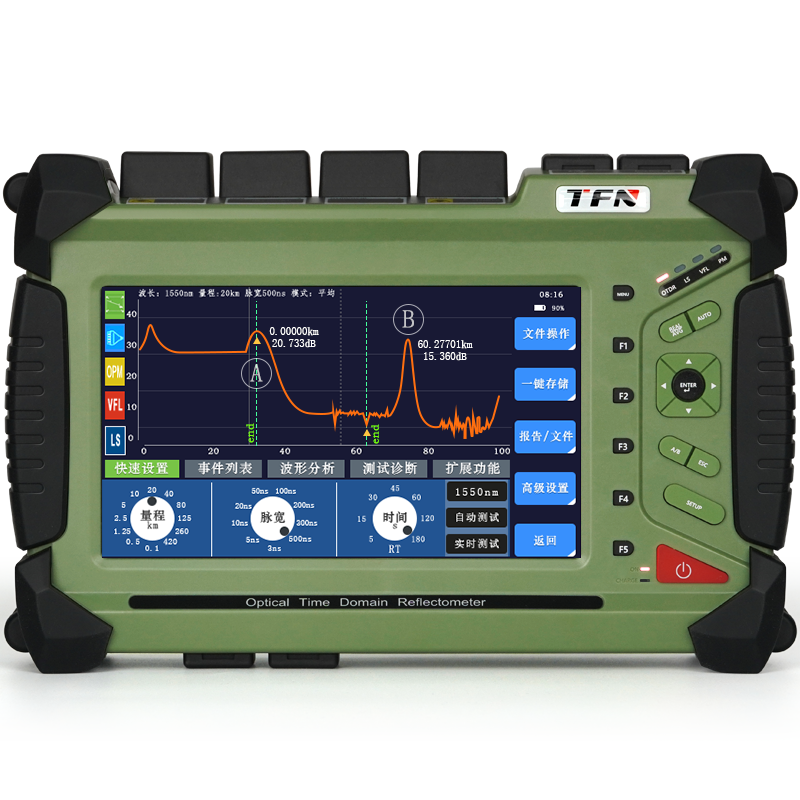

OTDR

The OTDR features flexible setup options, including launch and end fiber configurations. It supports customizable PASS/FAIL thresholds, visually distinguishes event qualifications, generates detailed PDF reports, and allows comparison of multiple SOR curves with advanced analysis methods like the four-point and LSA methods.

Real Experiences with the TFN OTDR

Eric H.

“Very easy to use. I’ve been a loyal customer of TFN for years. The technical support is nice, and the products are always reliable. it makes troubleshooting much quicker. Great value for the price.”

Scott N.

“I recently purchased an otdr tester, and I couldn’t be excited with my purchase. Compact and fast, it has become our go-to tool for fiber optic testing. The results are very accurate”

FAQs

Which languages does F4 support?

Our OTDR support English for standard version, and the optional version supports Russian, Spanish, and Arabic.

What’s the lead time?

For our standard products, if there are in stock and ready for shipment, the lead time is about 7-10 days. For our optional products, the lead time is about 25-30 days.

Do you support online training?

Yes, we support online training. We also have English operation videos for F7 OTDR (on our YouTube channel) and analysis software for our clients.
